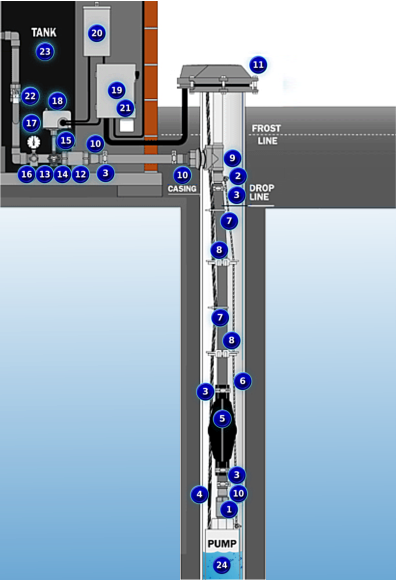

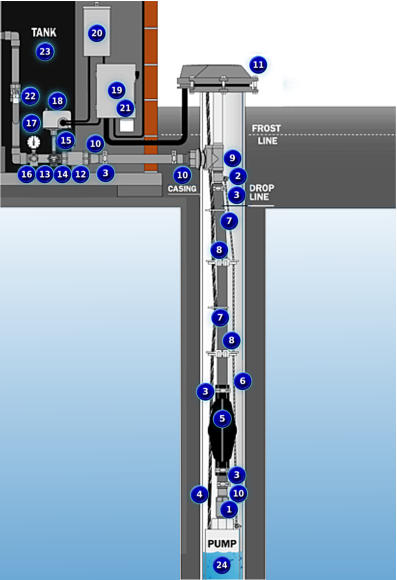

(24) Pump
A machine capable of lifting,
raising or moving water from a
well or tank to a higher elevation
or a distant location. A pump c
an create pressure and/or
increase the velocity of water.
New Pump Installation
If you're looking for excellent service and a people-
friendly approach, then you've come to the right
place. At Oasis Well & Pump Service Inc., our
ultimate goal is to serve you and make your
experience a pleasant one, and our team will stop at
nothing to ensure that you come away more than
satisfied.
At Oasis Well & Pump Service, we install, repair and
service almost any commercial or residential water
pump. We offer a full line of water pumps for all
purposes. Give as a call today to
experience the Oasis Well & Pump difference!
Call us today!
All Rights Reserved: Oasis Well and Pump 1332 North Franklin, Manchester Iowa 52057
(23) Pressure Tank
A storage vessel containing air
and water that provides storage
of water under pressure for
delivery between pump cycles;
allows for reserve capacity for
periods of peak demand;
protects and extends the life of
the pump by reducing the
number of on/off cycles; and
helps reduce overall system
maintenance.
(22) Ball Valve
Acts as a shut-off valve on the
supply line from tank to house.
(21) Lightning Arrestor
Protects pump motor and
controls from voltage surges
caused by lightning, switching
loads and powerline
interference.
(20) Pump Saver
Adjustable, solid state control
monitors system load conditions
to protect pump motor from dry
well, flow loss, rapid cycling,
slow recovery, air lock and
locked rotor problems.
(19) Safety Switch
For electric control and
distribution to the pump.
(18) Pressure Switch
Signals the pump to start when
the water system drops to a
pre-set low pressure, and to
stop when the high-pressure
mark is reached.
(17) Pressure Gauge
Measures water pressure
in Pressure Tank.
(16) Relief Valve
Protects against pressure build-
up. Should be used on any
system where the pump could
develop pressure that exceeds
the maximum system rating.
(15) Nipple
Male threads allow attachment
of Pressure Switch to Tank Tee.
(14) Drain Valve
Promotes easy draining
of the system.
(13) Tank Tee
Connects water line from
pump to pressure tank
and service line from tank
to house. Taps are provided to
accept Pressure Switch,
Pressure Gauge, Drain Valve,
Relief Valve, Snifter Valve, etc.
(12) Check Valve
Installed near the tank inlet to
hold water in the tank
during pump installation
when the pump is idle.
(11) Watertight Well Cap
Provides a watertight seal
when its inner gasket
compresses to outside
diameter of casing. Top of
cap removes easily to access
well for service.
(10) Male or Female
Insert Adapter
A pipe fitting that is
threaded on one end,
with serrations for attaching
polyethylene pipe on the
other end. Constructed of
stainless steel,
galvanized steel,
brass or plastic.
(9) Pitless Adapter
Provides a watertight sanitary
removable connection
between pump and house.
Installed in casing below
the frost line to prevent
freezing.
(8) Cable Guard
Protects submersible cable
wires from abrading
against sides of well and
holds drop pipe and
pump in the center of the
well.
(7) Cable Tie
Fastens cable to drop pipe.
(6) Safety Rope
A safety line from the top of
the well to the pump.
(5) Torque Arrestor
Installed directly above
Submersible Pump
to protect pump and well
components from
starting torque damage.
(4) Heat Shrink Splice Kit
Enables waterproof electric
cable splices in submersible
pump installations.
(3) Clamps
Provide connections between
Pipe and Insert Fittings or
Torque Arrestor.
(2) Rope Insert Adapter
A male or female pipe
adapter with a loop for
attaching a pump safety rope
or cable. Constructed of
stainless steel or brass.
(1) Check Valve
Located at the top of the
pump to hold water in
the tank and prevent
backflow through the pump.
